Transmutation Bar Chairs
A GECA accredited product. This product is made in collaboration with Dulux to recycle its waste material.
Select Your Site:
A GECA accredited product. This product is made in collaboration with Dulux to recycle its waste material.
We've joined the circular economy - recycling production waste.

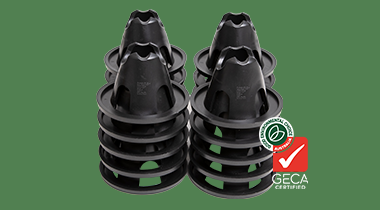

PostPrime PlasticTM Bar Chairs are routinely used for supporting reinforcing bar / mesh when placing concrete.
50 / 65mm Bar Chairs | Available in cartons of 20 or 200
This product is made in collaboration with Dulux to recycle its waste material.
Using powder waste from Dulux, Transmutation have found a way to turn this into plastic feedstock that can be used to displace virgin plastic in products. This is known as PostPrime Plastic™ pellet feedstock and the first product produced using this material is a Bar Chair.
The multi-purpose, high strength, highly stable bar chairs are suitable for civil, industrial and residential applications for providing designed concrete cover.
Environmentally preferable Bar Chairs that are ultra sturdy for supporting concrete reinforcing mesh. Certified by GECA, Transmutation Bar Chairs are ideal for Green Star projects.
Advantages:
Plus, Transmutation is the first manufacturer of Bar Chairs from environmentally certified recycled plastic.
*Reference: SRG Global Report number 173701-1
| STANDARD | RESULT | |
| Density | ASTM D638. | 978 kg / m3 |
| Compressive yield strength | ASTM D638. | 19.62 MPa |
| Poisson’s ratio | ASTM D638. | 0.46 |
| Modulus of elasticity | ASTM D638. | 832 MPa |
| Tensile yield strength | ASTM D638. | 15 MPa |
^Report: ExcelPlas Test Reports #13525 Tensile Testing, Compression, Density and Melt Flow Rate.
*Reference: SRG Global Report number 173701-1
Government Projects
Key project areas suitable include (but are not limited to):
Asset owners, builders and suppliers with a strong Environmental Social Governance
Ideal for businesses that have a strong ESG focus that want to showcase and select products with a sustainable focus.
Green Star Buildings
Targeting construction projects with sustainability and carbon emissions as a focus.
PostPrime PlasticTM Bar Chairs are routinely used for supporting reinforcing bar / mesh when placing concrete. Additionally bar chairs help to ensure the correct concrete cover is provided per design specifications.

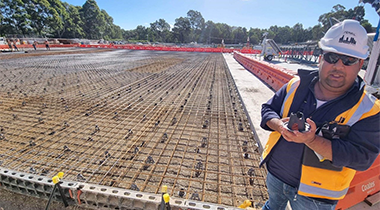

Reinforcing mesh is most effective in the top half of a slab, where it is used to increase its flexural strength and reduce the chance of shrinkage, heaving or settling cracking. To achieve this, bar chairs are utilised to suspend the mesh / reinforcing bar.
Typically, bar chairs which will allow 40-50mm of cover to the top of the finished pour height are selected. Using tie wire as part of the reinforcement placement process these chairs are tied to the layer of reinforcement to fix it and remove the chance of movement during the concrete pour.
PostPrime PlasticTM Bar Chairs: 20 or 200 per carton
PostPrime PlasticTM Bar Chairs are supplied in recyclable cardboard cartons.
Orders can be placed through our Dulux Powder Coatings Advice and Specifications team who will process the order through Transmutation.
Call 13 24 99 or email [email protected]
Stock will be sent direct from Transmutation.
The substrate surface can be blinding, cement treated crushed rock, compacted ground or formed surfaces. The chairs are typically utilised in horizontal applications however can also work in vertical spacing for walls.
To calculate the required number of bar chairs per m2, an average of 1 chair for every square metre can be applied as a general guideline for light reinforcement and 1 chair per 0.55 m2 for densely reinforced applications. This can vary depending on the weight of mesh / bar and the particulars or your project. Always refer to your individual engineering specifications / calculations.
GECA Certified
Transmutations Bar Chairs are now GECA certified. The GECA certification indicates that a product has been assessed from a whole of life perspective and is certified as an environmentally preferable product. For more information visit https://geca.eco/licensees/transmutation/
100% Australian Made
Transmutation is a licensee of “Australian Made” as the product has been substantially transformed in Australia. As a result all the processes are conducted in Australia and all ingredients are sourced and made in Australia.
Standards Compliance
A Safety Data Sheet (SDS) is available on request. Read the SDS and TDS carefully prior to use as application or performance data may change from time to time. In emergency, contact any Poisons Information Centre (phone 13 11 26 within Australia) or a doctor for advice.
The Technical Data Sheet (TDS) summarises our best knowledge of the product, including how to use and apply the product based on the information available at the time. You should read this TDS carefully and consider the information in the context of how the product will be used, including in conjunction with any other product and the type of surfaces to, and the manner in which, the product will be applied.
Our responsibility for products sold is subject to our standard terms and conditions of sale. Transmutation and Dulux does not accept any liability either directly or indirectly for any losses suffered in connection with the use or application of the product whether or not in accordance with
any advice, specification, recommendation or information given by it.
