Dulux Alumi Shield™ warranties for powder coating on architectural grade aluminium

Dulux Powder Coatings are an ideal choice for the long term protection of architectural aluminium items for your next project, and provide assurance through the issue of Alumi Shield™ Warranties.

Protected substrates

The Dulux Alumi Shield™ warranties are available for warranty grade Dulux Powder coat products on architectural grade aluminium. Example items made from architectural aluminium include windows, louvres, doors, balustrades, decorative sheet amongst others.

Warranted Performance

The Alumi Shield™ Warranty is made up of two key components, a colour warranty (for fade and chalking) and a durability warranty (film integrity).

Colour Warranty

Colour Warranty

The Alumi Shield™ Colour Warranty is your assurance that the colour integrity will be maintained. It is made up of two components: Fade1 & Chalk2

Durability Warranty

Durability Warranty

The Alumi Shield™ Durability Warranty is your assurance of film integrity. The powder coating will not peel, crack or flake for the warranty period from the date the product is applied to the metal.

Terms and conditions apply

  • Dulux Alumi Shield™ Warranties are your assurance that the coating will not:
    • 1Fade (colour) – Colour fade testing will give a delta E (Hunter) laboratory reading less than five units from the original colour. In accordance with ASTM D2244.
    • 2Chalk – not exceed a rating of 2 for whites & pastels and a rating of 3 for deep colours as assessed in accordance with AS1580.481.1.11 test method.
  • The Alumi Shield™ durability warranty is a film integrity assurance that products will not Peel, crack or flake for the warranty period from the date the Product is applied to the Metal.
  • When aluminium items are exposed to interior and exterior environments it is essential that should only one side of a section of metal be coated, or if a section is cut exposing the raw metal, they must be sealed with an appropriate small joint sealant to protect the non-coated area from the environment, i.e. not exposed to moisture, air and excessive heat. Should the seal fail, and a claim is made for an Alumi Shield™ warranty project the warranty for the area affected will be void as the integrity of the seal is not the responsibility of Dulux.
  • Warranties are only valid when applied by a Dulux Accredited Powder Coater to the warranty specification on recommended project types and conditions and maintained within the Dulux recommended Care and maintenance guidelines. For more information visit the Tech Advice page here.

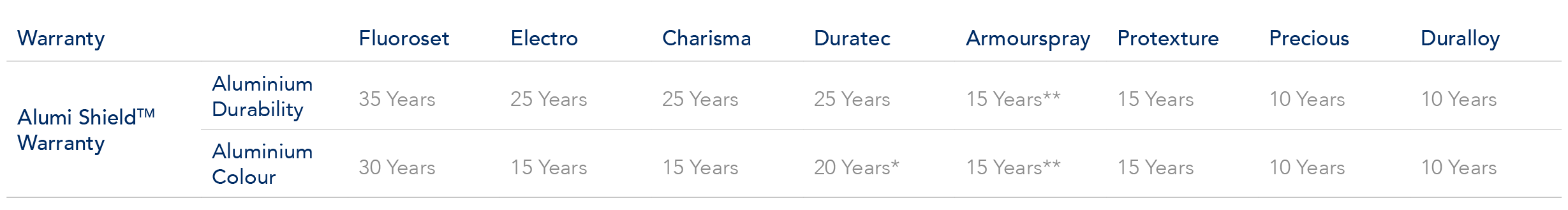

All Dulux premium powder coat products are backed by product specific Alumi ShieldTM warranties. Below is an overview of the warranty periods by product available from Dulux.

*Excluding Intensity – 15 Years

**The Alumi Shield Colour Warranty is not applicable to Armourspray clear products. The Alumi Shield Durability Warranty only applies to Armourspray clear products when applied over Dulux Protexture, Duratec, Electro & Charisma powder coatings.

Project Suitability

It is important to define your project correctly to ensure the correct product is specified and the performance and warranty is able to be gained for your project.

Both project type and the environment (conditions) will impact on the exposure of the powdercoat to elements such as UV, dirt and salt. For instance, marine and coastal environments are exposed to winds and sea salts, which have a long-term impact on the performance of coating systems due to erosion and weathering, and commercial projects will be exposed to greater environmental impacts, whether they be the usage of the environment or the height of the building.

To ensure products are fit for these environments Dulux recommends suitable products based on the AS3715 and AAMA testing standards. These standards provide a benchmark of product quality that are an assurance that your asset will be protected by a product fit for purpose. For complete details relating to these standards visit aamanet.org

To define projects we utilise three key sources:

1. The building classifications under the Building code of Australia (BCA)
2. Industry standards for powder coatings – Primarily AAMA and AS3715
3. Environmental condition utilising AS4312 and ISO12944 Atmospheric corrosivity zones in Australia as a guide

The following tables allow you to identify your project, to look at the appropriate products for the environment, whether it be interior or exterior, the care and maintenance required, and details on our Dulux Accredited Powder Coaters, as only Dulux Accredited Powder coaters are able to issue our Dulux Alumi Shield warranties.

Important Design Considerations

Dulux Alumi Shield™ warranties are available on a wide range of fabricated architectural aluminium items, but those items must be designed, prepared (pre-treated), coated, fabricated and installed to standard ensuring that the item is fully protected.

It is essential that any item that is coated must be designed and fabricated to ensure:

  • It meets key standards – Refer to AS 2312.1 and the relevant building code.
  • Protection is a key consideration at the early stages of design – The design should allow the item to be prepared for coating correctly and that the minimum thickness of the specified coating can be achieved.
  • Exposed areas are appropriately sealed to last the duration of the warranty – It is essential that the choice of other materials that contribute to protection such as sealants should be made to ensure that an Alumi Shield™ warranty is not void due to the sealants failure. This is important if only one side of a section of metal is to be coated, or if a section is cut exposing the raw metal, as it must be in a sealed environment to protect the non-coated area from the environment i.e. not exposed to moisture, air and excessive heat. Should the seal fail, and a claim is made for an Alumi Shield™ warranty project the warranty for the area affected will be void as the integrity of the seal is not the responsibility of Dulux.
  • The following design elements are avoided – Narrow crevices, poor air circulation, depressions, sharp edges and corners, large flat ledges (not window ledges), intermittent welding, undrained flat surfaces, unsealed hollow sections, flat surfaces in loose contact where moisture may be drawn in between them by capillary action or where water and foreign matter will lodge, as these areas may result in premature failure of the coating system.
  • Failure caused by post formed or post fabrication processes are avoided – Please be aware warranties shall not apply to areas where a failure is caused from post formed or post fabrication processes, such as metal perforation, welding, cutting or any other circumstances beyond the reasonable control of Dulux. Many post fabrication processes can impede achievement of a continuous layer of pre-treatment and the minimum film build of powder coating. Where there is doubt please consult the relevant guideline or regulation such as the building code or window association for information on mitigating any potential damage that could be caused by post fabrication processes.

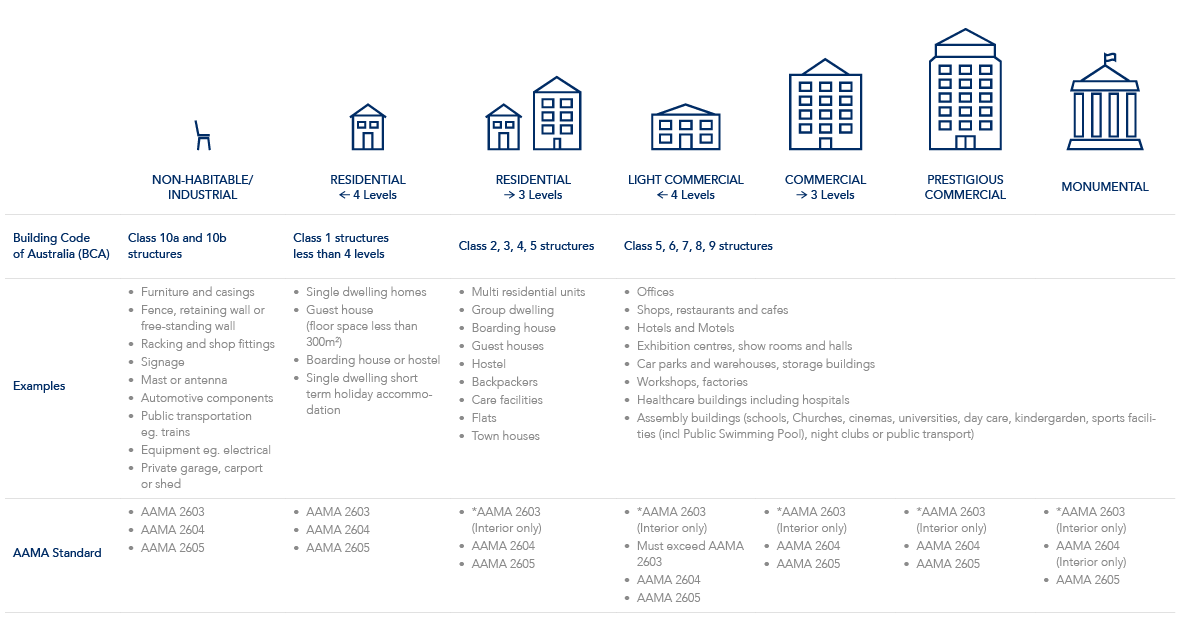

Use the following table to help you identify your project and the appropriate standard a product should meet for that environment.

Project type definitions:

  • Non-habitable/Industrial projects are those that are not dwelling types. Examples can be furniture, bus shelters, signage etc.
  • Residential properties < 4 levels are typically easy to maintain, given their height and access.
  • Light commercial projects < 4 levels are sheltered from neighbouring buildings, but require greater durability due to higher usage and wear.
  • High-rise residential and commercial projects are less sheltered from neighbouring buildings, raising their exposure and reducing their ease of maintenance.
  • Prestigious commercial projects attract attention and require high quality finishes to uphold the longevity and design requirements.
  • Monumental projects attract the most attention and have the highest standards required to uphold the reputation and protection expected from landmark sites.

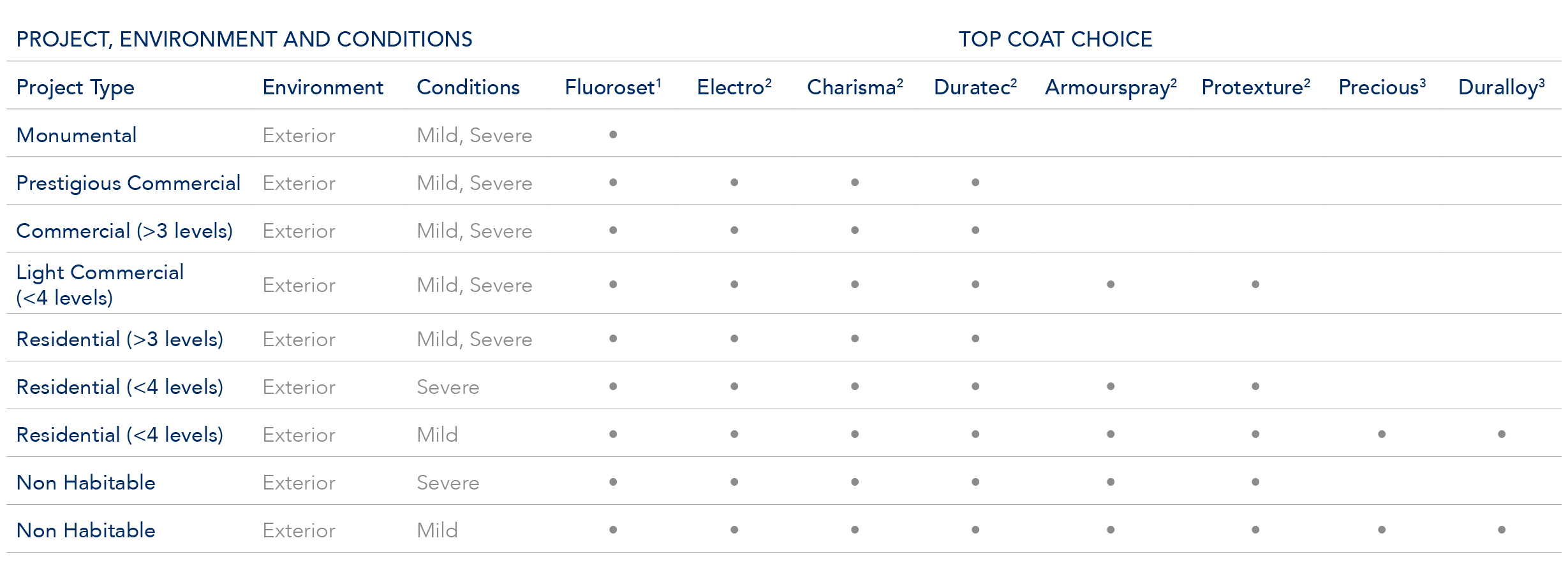

Use the following table to help identify the product choice you have for the exterior use of Dulux Premium Powder coatings on your project. Refer to the conditions information to determine the environment that your project will be exposed to.

  • Alumi Shield™ warranties are available when applied by a Dulux Accredited Powder Coater to the warranty specification on recommended project types and conditions
    All Dulux powder products are NOT suitable in strongly acidic or caustic environments so the pH must be between 5 and 9.
    1. Fluoroset may be suitable in locations <10m from the high tide line e.g. harbours (contact Dulux for advice).
    2. Electro, Charisma, Duratec, Armourspray and Protexture, are only suitable for environments >10m from the high tide line.
    3. Duralloy and Precious are only suitable for environments >100m from the high tide line.
    Please refer to ‘Exterior environments close to liquids other than coastal, river and lake salt water environments’ for warranty implications where powder coatings may be in close proximity.

Information for Perforated and Expanded aluminium:
Alumi Shield Warranties on perforated and expanded aluminium in exterior environments are available for the following products and conditions:
a. Mild – Duralloy, Precious, Protexture, Armourspray, Duratec, Charisma, Electro and Fluoroset (E-Prime base coat not mandatory)
b. Severe – Protexture, Armourspray, Duratec, Charisma, Electro and Fluoroset (E-Prime base coat mandatory)
For more information about specifications on perforated and expanded aluminium call 13 24 99 or visit here.

Conditions

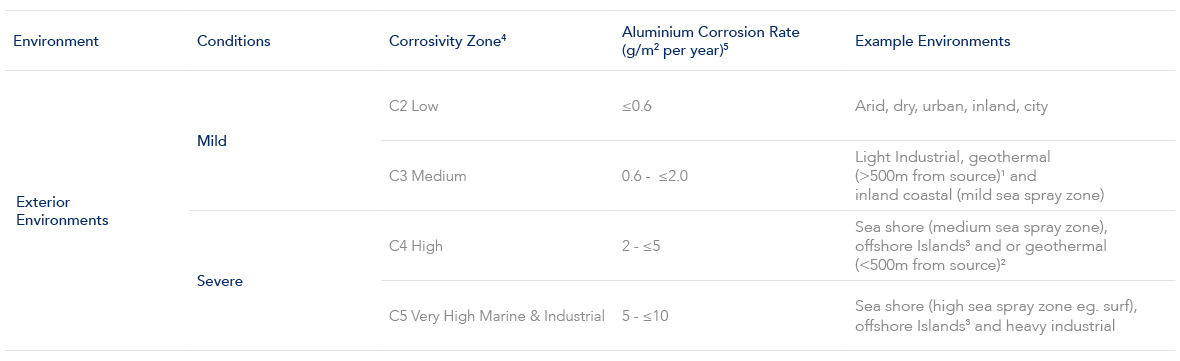

Use the following table to help identify the product choice you have for the exterior use of Dulux Premium Powder coatings on your project. Refer to the conditions information to determine the environment that your project will be exposed to.

1. Geothermal environments greater than 500m of a bore, mud pool, steam vent, or other source with a pH between 5 and 9. For pH outside this consult Dulux.
2. Geothermal hot spots within 500m of a bore, mud pool, steam vent, or other source.
3. All offshore islands including Waiheke Island, Stewart Island, Fraser Island and Pacific islands eg PNG, Fiji, Samoa, Tonga, Tahiti, Noumea
4. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium and Carbon (Mild) Steel are determined by the following standards:
AS 4312 – Atmospheric corrosivity zones in Australia.
AS 2312.1- Guide to the protection of structural steel against atmospheric corrosion by the use of protective coatings. Part 1: Paint coatings
ISO 9223 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation
5. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium are determined by the following standard:
ISO 9223- Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation

Exterior environments close to liquids other than coastal, river and lake salt water environments

For powder coated assets close to liquids other than the sea, eg fences near outdoor swimming pools, fountains, outdoor bathrooms or furniture etc.

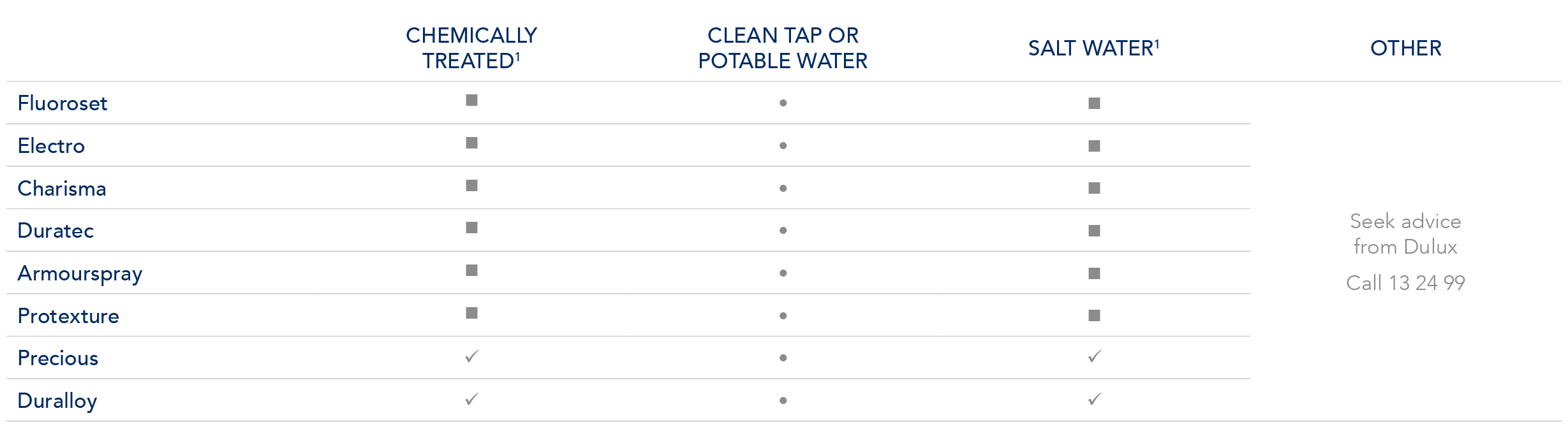

Please refer to the guidance below for your product choice and to understand the warranty limitations in these environments.

1. Aggressive liquids such as Chemically Treated liquids and Salt Water must be cleaned off immediately as per the Dulux Care and Maintenance guide.
Please note that chemically treated water includes antimicrobial treatments, e.g. in pools, anti-corrosive chemicals, and soapy water in bathrooms and showers.
■ Where indicated Alumi Shield and Steel Shield warranties are available on areas >than 1m from the liquid.
✓ Where indicated Alumi Shield and Steel Shield warranties are available on areas >than 2m from the liquid (ie outside the splash zone).
● Where indicated Alumi Shield and Steel Shield warranties are available any distance from the liquid.
Alumi Shield and Steel Shield warranties are only available when applied by a Dulux Accredited Powder Coater to the warranty specification on recommended project types and conditions.
All Dulux powder products are NOT suitable in strongly acidic or caustic environments so the pH must be between 5 and 9.
Alumi Shield and Steel Shield warranties are not available if the powder coating is immersed in any liquid.

Advice Line

Our dedicated consultants can help simplify the specification process, saving you time and money by providing the right coating advice for your project. Call 13 24 99

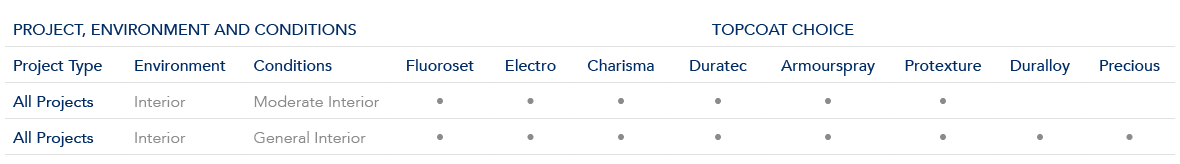

Use the following table to help identify the product choice you have for the interior use of Dulux Premium Powder coatings on your project. Refer to the conditions information to determine the environment that your project will be exposed to.

  • Alumi Shield warranty available.

All Dulux powder product are NOT suitable in strongly acidic or caustic environments so the pH must be between 5 and 9.

Please refer to ‘Interior environments close to liquids’ for warranty implications where powder coatings may be in close proximity to liquids.

Information for Perforated and Expanded aluminium:

Alumi Shield Warranties on perforated and expanded aluminium in interior environments are available for the following products and conditions:
a. General – Protexture, Armourspray, Duralloy, Precious, Charisma, Electro, Duratec and Fluoroset (E-Prime base coat not mandatory).
b. Moderate – Protexture, Armourspray, Duratec, Charisma, Electro and Fluoroset (/E-Prime base coat mandatory).
For more information about specifications on perforated and expanded aluminium call 13 24 99 or visit here.



Conditions

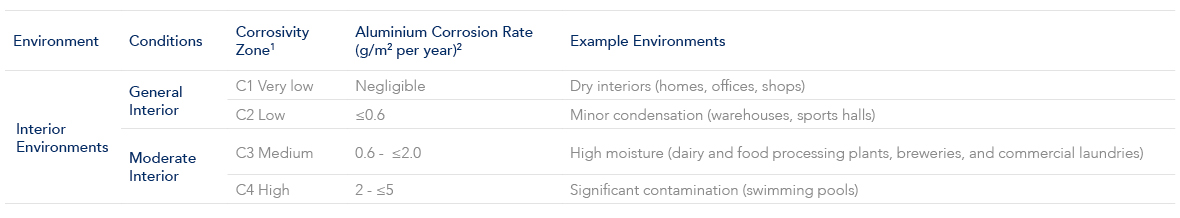

Use the following table which references AS2312.1, AS 4312 and ISO 9223 to identify the environment, conditions and atmospheric corrosivity categories
To pinpoint your projects corrosivity zone this table should be used together with the corrosivity zone maps contained within AS 4312.

4. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium and Carbon (Mild) Steel are determined by the following standards:
AS 4312 – Atmospheric corrosivity zones in Australia.
AS 2312.1- Guide to the protection of structural steel against atmospheric corrosion by the use of protective coatings. Part 1: Paint coatings
ISO 9223 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation 2. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium are determined by the following standard:
ISO 9223 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation

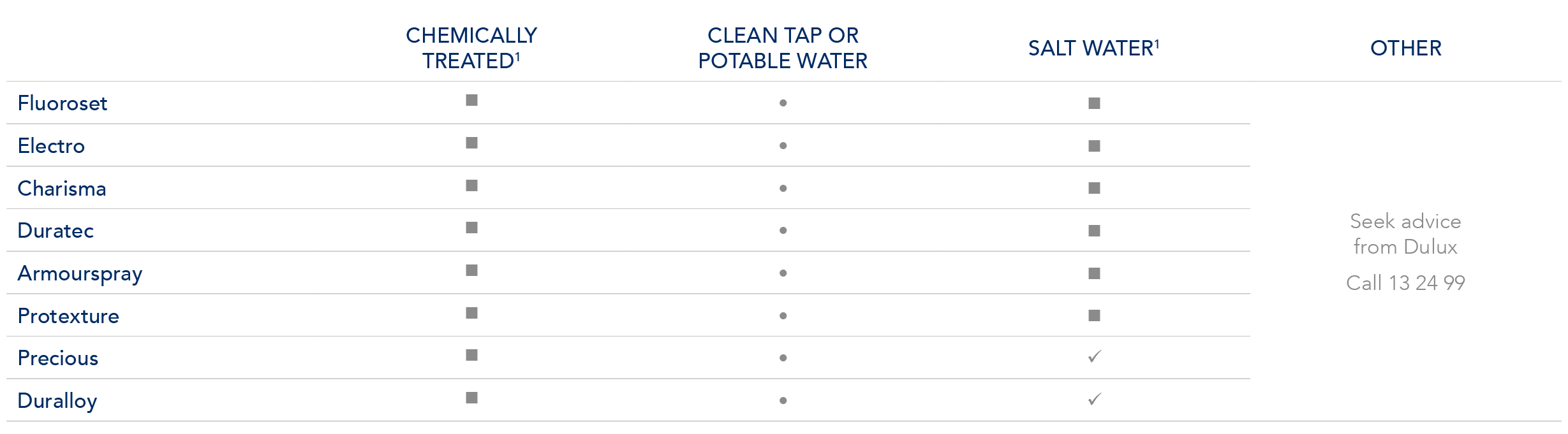

Interior environments close to liquids

For powder coated assets close to liquids, eg fences, windows and doors near indoor swimming pools, fountains, fitting in bathrooms or furniture etc please refer to the guidance below for your product options for your project.

1. Aggressive liquids such as Chemically Treated liquids and Salt Water must be cleaned off immediately as per the Dulux Care and Maintenance guide.
Please note chemically treated water includes antimicrobial treatments, e.g. in pools, anti-corrosive chemicals, and soapy water in bathrooms and showers.
■ Where indicated Alumi Shield and Steel Shield warranties are available on areas >than 1m from the liquid.
✓ Where indicated Alumi Shield and Steel Shield warranties are available on areas >than 2m from the liquid (ie outside the splash zone).
● Where indicated Alumi Shield and Steel Shield warranties are available any distance from the liquid.
Alumi Shield and Steel Shield warranties are only available when applied by a Dulux Accredited Powder Coater to the warranty specification on recommended project types and conditions.
All Dulux powder product are NOT suitable in strongly acidic or caustic environments so PH must be between 5 and 9.
Alumi Shield warranties are not available if the powder coating is immersed in any liquid.
The Duralloy and Precious ranges are NOT suitable nor warranted in C4 environments (eg. Internal Swimming Pools).



Advice Line

Our dedicated consultants can help simplify the specification process, saving you time and money by providing the right coating advice for your project. Call 13 24 99

For a comprehensive overview and specific specification details on aluminium and steel click here.

The table references AS2312.1, AS 4312 and ISO 9223 to identify the environment, conditions and atmospheric corrosivity categories.

1. Geothermal environments greater than 500m of a bore, mud pool, steam vent, or other source with a pH between 5 and 9. For A pH outside this consult Dulux.
2. Geothermal hot spots within 500m of a bore, mud pool, steam vent, or other source.
3. All offshore islands including Waiheke Island, Stewart Island, Fraser Island and Pacific islands eg PNG, Fiji, Samoa, Tonga, Tahiti, Noumea
4. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium and Carbon (Mild) Steel are determined by the following standards:
AS 4312 – Atmospheric corrosivity zones in Australia.
AS 2312.1- Guide to the protection of structural steel against atmospheric corrosion by the use of protective coatings. Part 1: Paint coatings
ISO 9223 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation
5. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium are determined by the following standard:
ISO 9223 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation

Dulux Accredited Powder Coaters

Only Dulux Accredited Powder Coaters are able to issue our Dulux Alumi Shield™ warranties after demonstrating their capability to meet stringent quality conditions and international standards.



For more information, or to find a Alumi Shield approved Dulux Accredited Powder Coater, click here.
